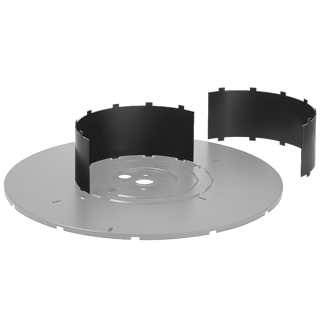

Barrel BSM 400/10-160
01 Tape reels
- Single-use
- Material : PS | Material Information
- Catalogue categorization: 01 Tape reels
Technical data - spools
Spools
| Flange Ø | Barrel Ø | Central bore Ø | Width | Winding width | Flange thickness |
Winding- volume |
Central bore Ø tapered part |
Drive- hole/pin |
Drive- distance |
|---|---|---|---|---|---|---|---|---|---|
| d1 [mm] | d2 [mm] | d3 [mm] | L1 [mm] | L2 [mm] | S [mm] | V [cm³] | d4 [mm] | d5 [mm] | E1 [mm] |
| 400 | 10 - 160 |
Technical drawing
Spools
