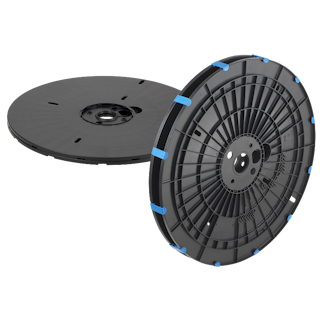

Flange BSH 590

01 Tape reels

  • Reusable
  • Winding material : Metal strip, metal tape, Stamping parts, Tapes, Endless goods, Belted components, rubber profiles
  • Material : PS   |   Material Information
  • Central bore Ø : 56 mm
  • Catalogue categorization: 01 Tape reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
590 160 20 - 56 8.5 - 380 12 2153 - 96251 2x20+2x13 56

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Flange BSH 590 10 8.9 61x14x62 200 180 80x120x135

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
