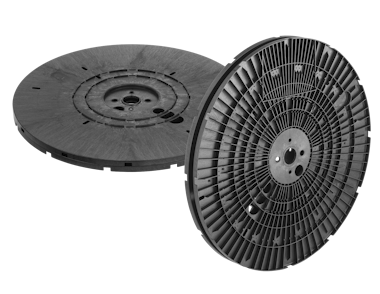

Flange BSM-HD 800

00 New Products, 01 Tape reels

  • Reusable
  • Winding material : Endless goods, Belted components, rubber profiles, Tapes, Metal strip, metal tape, Stamping parts
  • Material : PS   |   Material Information
  • Central bore Ø : 56 mm
  • Catalogue categorization: 00 New Products, 01 Tape reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
800 400 20 - 56 10 - 160 20 3770 - 60319 2x20+2x13 56

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Flange BSM-HD 800 0 - 60 - 80x120x135

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
