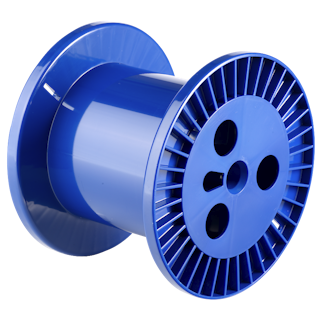

Reel 10-S

24 Spools for photovoltaic ribbon/flat wire

  • Reusable
  • Winding material : Enamelled copper wire, Metal strip, metal tape, PV-Ribbons
  • Material : ABS   |   Material Information
  • Standard winding volume : 1023 cm³
  • Central bore Ø : 16 mm
  • Catalogue categorization: 24 Spools for photovoltaic ribbon/flat wire

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
152 101 16 121 101 10 1023

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel 10-S 75 21.50 68x44x71 1008 262 120x100x213

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
