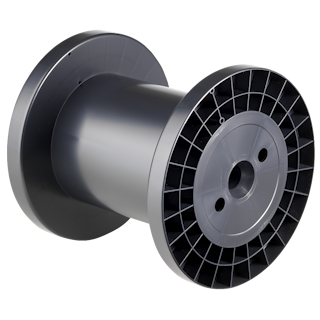

Reel 200 E

03 Cylindrical barrelled delivery spools IEC 60264-2-1

  • Single-use
  • Winding material : Staple wire, Low carbon wires, Steel wire rope, Extruded cables
  • Material : PS   |   Material Information
  • Standard winding volume : 3063 cm³
  • Central bore Ø : 22 mm
  • Catalogue categorization: 03 Cylindrical barrelled delivery spools IEC 60264-2-1
  • DIN EN 60264-2-1 Cylindrically barrelled delivery spools - Dimensions
  • DIN EN 60264-2-3 Single-use spool with cylindrically barrelled delivery - Spezification

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
200 125 16 - 22 200 160 20 3063 34 2x13 32

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel 200 E 30 16 66x54x67 336 166 110x120x185

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
