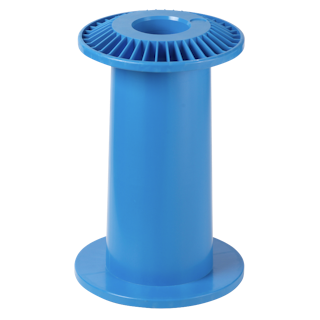

Reel 315/500-E

19 Reels and reel containers, 05 Spools with tapered barrel

  • Single-use
  • Winding material : Enamelled copper wire
  • Material : PS , ABS   |   Material Information
  • Standard winding volume : 19768 cm³
  • Central bore Ø : 100 mm
  • Catalogue categorization: 19 Reels and reel containers, 05 Spools with tapered barrel
  • DIN EN 60264-3-1 Delivery spools with tapered barrel - Dimensions
  • DIN EN 60264-3-3 single use spools with tapered barrel - Spezification

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
315 180 100 500 425 37.5 19768 106 16 x 2 62.5

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VB 315/500 400 630 338 355 63

Spool in container

Designation Flange Ø bottom Barrel Ø bottom Flange Ø top Barrel Ø top Overall height Winding width Distance to surface Flange thickness top
d1 d2 d3 d4 L1 L2 t2 S1
Reel 315/500-E 315 200 300 180 500 425 20 37.50

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel 315/500-E 5 14.80 66x54x67 48 134 100x120x215
Container VB 315/500 0 0 27 140 114x114x200

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)
