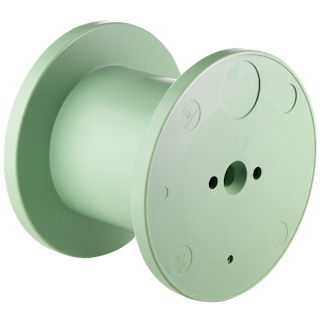

Reel DWF 250
19 Reels and reel containers, 03 Cylindrical barrelled delivery spools IEC 60264-2-1
- Reusable
- Winding material : Enamelled copper wire, Alloy wires, Stranded wires, Steel wire rope, Resistance wire, superconductor
- Material : PS , ABS | Material Information
- Standard winding volume : 4637 cm³
- Central bore Ø : 22 mm
- Catalogue categorization: 19 Reels and reel containers, 03 Cylindrical barrelled delivery spools IEC 60264-2-1
- DIN EN 60264-2-1 Cylindrically barrelled delivery spools - Dimensions
Technical data - spools
Spools
Flange Ø | Barrel Ø | Central bore Ø | Width | Winding width | Flange thickness |
Winding- volume |
Central bore Ø tapered part |
Drive- hole/pin |
Drive- distance |
---|---|---|---|---|---|---|---|---|---|
d1 [mm] | d2 [mm] | d3 [mm] | L1 [mm] | L2 [mm] | S [mm] | V [cm³] | d4 [mm] | d5 [mm] | E1 [mm] |
250 | 160 | 16 - 22 | 200 | 160 | 20 | 4637 | 34 | 2x13 | 32 |
Container
Designation | Outer Ø | Overall height | Inner Ø bottom | Inner Ø top | |
---|---|---|---|---|---|
d1 max | h1 max | d2 | d3 | h2 min | |
Container VB 250 | 304 | 273 | - | - | - |
Packaging
Designation | Cardboard box | Cardboard box weight | Cardboard box Outside Deminsions | Pallets | Pallet weight | Pallet's external dimensions |
---|---|---|---|---|---|---|
piece | kg | cm | piece | kg | cm | |
Reel DWF 250 | 18 | 26.5 | 68x44x71 | 240 | 338 | 106x129x177 |
Container VB 250 | 0 | 0 | 96 | 154 | 112x120x188 | |
