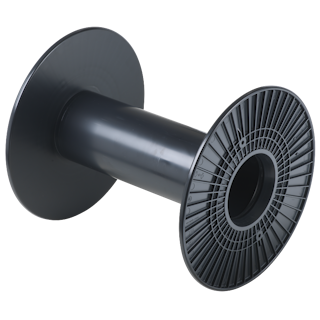

Reel EM 400/127-401

08 LM / EM reels, 07 General reels

  • Reusable
  • Winding material : data cable, power cables, Extruded cables
  • Material : ABS   |   Material Information
  • Standard winding volume : 43751 cm³
  • Central bore Ø : 127 mm
  • Catalogue categorization: 08 LM / EM reels, 07 General reels
  • DIN 46395

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
400 144 16 - 127 425 50 - 400 12.5 5469 - 43751 143.5

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel EM 400/127-401 0 - 48 130 100x120x185

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
