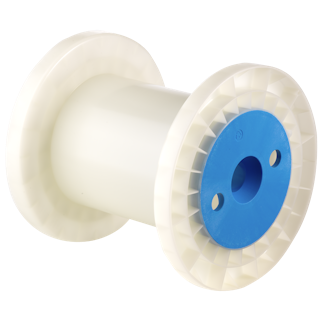

Reel EPA 160-E

04 Cylindrically barrelled delivery spools

  • Winding material : Stainless steel wires, Alloy wires
  • Standard winding volume : 1568 cm³
  • Central bore Ø : 22 mm
  • Catalogue categorization: 04 Cylindrically barrelled delivery spools
  • DIN EN 60264-2-1 Cylindrically barrelled delivery spools - Dimensions

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
160 100 22 160 128 16 1568 34 2x13 32

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 160 169 167 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel EPA 160-E 72 25.3 66x54x67 540 194 85x120x185
Container VD 160 42 11.0 80x54x52 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)
