Reel FS 180 13 16/13-16,8

28 Special spools

  • Single-use
  • Winding material : Belted components
  • Material : PS   |   Material Information
  • Standard winding volume : 247 cm³
  • Central bore Ø : 13 mm
  • Catalogue categorization: 28 Special spools

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
179.5 60 13 17 2.7 - 11 1.5 60 - 247

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel FS 180 13 16/13-16,8 152 7.80 81x43x38 0 -

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

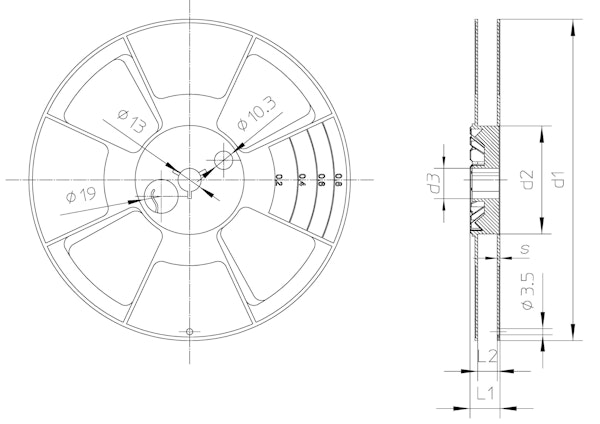

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set
