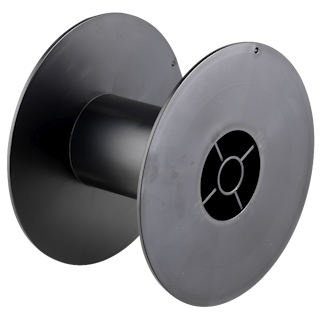

Reel HD 150/19-100

27 Spools for 3D-printer, 06 Welding wire reels

  • Single-use
  • Winding material : Fine wires, Staple wire, Low carbon wires, 3 D printer filaments
  • Material : PS   |   Material Information
  • Standard winding volume : 1427 cm³
  • Central bore Ø : 19.30 mm
  • Catalogue categorization: 27 Spools for 3D-printer, 06 Welding wire reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
150 55 19.3 100 94 3 1427 1x9 19

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel HD 150/19-100 140 22.10 80x54x52 1232 202 82x128x180

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
