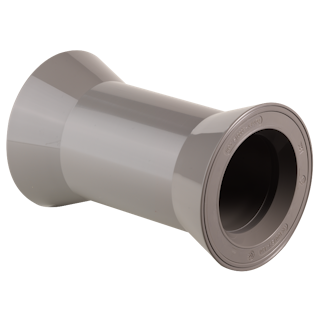

Reel HK 100/59-160

13 Fine wire reels, 02 Spools with conical flanges

  • Reusable
  • Winding material : bare wires, Stainless steel wires, Enamelled copper wire, Alloy wires
  • Material : ABS   |   Material Information
  • Standard winding volume : 429 cm³
  • Central bore Ø : 59 mm
  • Catalogue categorization: 13 Fine wire reels, 02 Spools with conical flanges

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
100 75 59 160 91 34.5 429

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel HK 100/59-160 48 17.70 54x40x41 0 -

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
