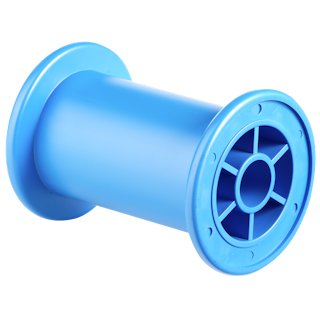

Reel HK 76

13 Fine wire reels

  • Reusable
  • Winding material : Fine wires, Enamelled copper wire, Alloy wires
  • Material : PS , ABS   |   Material Information
  • Standard winding volume : 121 cm³
  • Central bore Ø : 16 mm
  • Catalogue categorization: 13 Fine wire reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
63.4 44 16 86.3 76 5 121

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 80 86 85 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel HK 76 216 16 68x44x37 0 -
Container VD 80 330 11.8 77x52x53 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
