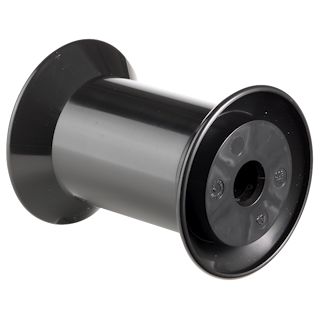

Reel HK 80 S

13 Fine wire reels, 02 Spools with conical flanges

  • Reusable
  • Winding material : Bond wires, Stainless steel wires, Fine wires, Enamelled copper wire, Weaving wire
  • Material : PS , ABS   |   Material Information
  • Standard winding volume : 220 cm³
  • Central bore Ø : 16 mm
  • Catalogue categorization: 13 Fine wire reels, 02 Spools with conical flanges

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
80 55 8 - 16 100 69.5 15 220

Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 100 107 105.50 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel HK 80 S 180 15.80 65x45x35 0 -
Container VD 100 144 9.30 68x44x74 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)
