Reel HK 80/16-95

02 Spools with conical flanges, 12 Reels for soldering wire, Lyonese thread

  • Single-use
  • Winding material : Enamelled copper wire, Weaving wire
  • Material : PS , ABS   |   Material Information
  • Standard winding volume : 321 cm³
  • Central bore Ø : 16 mm
  • Catalogue categorization: 02 Spools with conical flanges, 12 Reels for soldering wire, Lyonese thread

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
80 38 16 95 77 9 321

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel HK 80/16-95 450 25.70 66x54x67 0 -

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

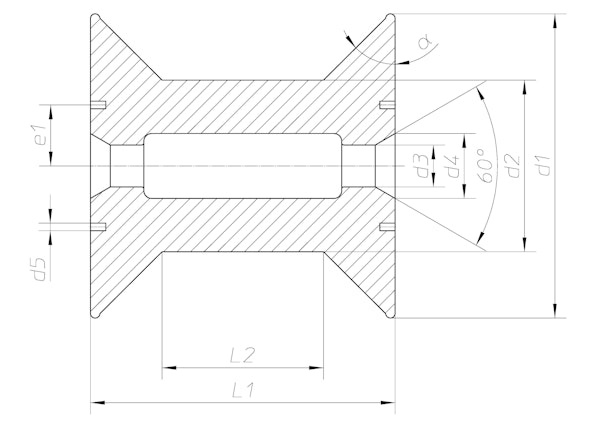

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.
