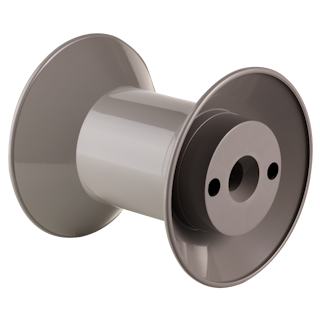

Reel HKV 160

13 Fine wire reels, 02 Spools with conical flanges, 24 Spools for photovoltaic ribbon/flat wire

Reusable
Winding material : Stainless steel wires, Fine wires, Enamelled copper wire, Alloy wires
Material : ABS | Material Information
Standard winding volume : 1675 cm³
Central bore Ø : 22 mm
Catalogue categorization: 13 Fine wire reels, 02 Spools with conical flanges, 24 Spools for photovoltaic ribbon/flat wire
DIN EN 60264-5-1 Cylindrically barrelled delivery spools and conical flanges - dimensions
DIN EN 60264-5-2 Cylindrically barrelled delivery spools and conical flanges - spezification for reusable

Technical data - spools

Flange Ø	Barrel Ø	Central bore Ø	Width	Winding width	Flange thickness	Winding- volume	Central bore Ø tapered part	Drive- hole/pin	Drive- distance
d1 [mm]	d2 [mm]	d3 [mm]	L1 [mm]	L2 [mm]	S [mm]	V [cm³]	d4 [mm]	d5 [mm]	E1 [mm]
160	90	16 - 22	160	85	37.5	1675	34	2x13	32

Designation	Outer Ø	Overall height	Inner Ø bottom	Inner Ø top
	d1 max	h1 max	d2	d3	h2 min
Container VD 160	169	167	-	-	-

Designation	Cardboard box	Cardboard box weight	Cardboard box Outside Deminsions	Pallets	Pallet weight	Pallet's external dimensions
	piece	kg	cm	piece	kg	cm
Reel HKV 160	80	27.5	66x54x67	490	168	80x120x178
Container VD 160	42	11.0	80x54x52	0	0
Important: If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.
