Reel HS 401 / 395/60-280

27 Spools for 3D-printer, 15 Cable reels and Utility reels

  • Reusable
  • Winding material : rubber profiles, data cable, power cables, Extruded cables, Insulated cables, Cable assembly, Optical fibre cable, optical cables, Signal cable, Plastic rope
  • Material : PP TSG   |   Material Information
  • Standard winding volume : 23303 cm³
  • Central bore Ø : 60 mm
  • Catalogue categorization: 27 Spools for 3D-printer, 15 Cable reels and Utility reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
395 180 60 280 240 20 23303 2x16 71

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel HS 401 / 395/60-280 0 - 72 140 100x120x245

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

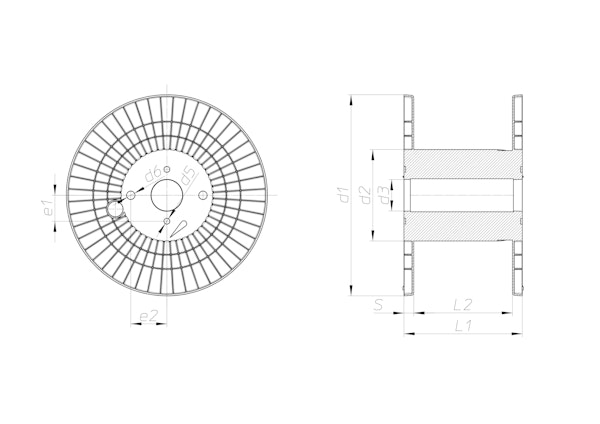

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set
