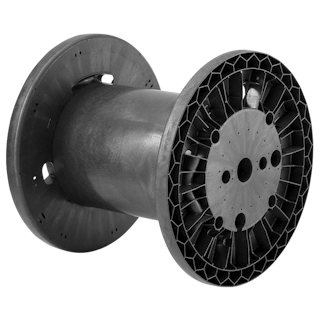

Reel HS 800 / 795/80-750
15 Cable reels and Utility reels
- Reusable
- Winding material : rubber profiles, data cable, power cables, Extruded cables, Insulated cables, Cable assembly, Optical fibre cable, optical cables, Signal cable, Plastic rope
- Material : PP TSG | Material Information
- Standard winding volume : 209155 cm³
- Central bore Ø : 80 mm
- Catalogue categorization: 15 Cable reels and Utility reels
Technical data - spools
Spools
Flange Ø | Barrel Ø | Central bore Ø | Width | Winding width | Flange thickness |
Winding- volume |
Central bore Ø tapered part |
Drive- hole/pin |
Drive- distance |
---|---|---|---|---|---|---|---|---|---|
d1 [mm] | d2 [mm] | d3 [mm] | L1 [mm] | L2 [mm] | S [mm] | V [cm³] | d4 [mm] | d5 [mm] | E1 [mm] |
795 | 450 | 80 | 750 | 620 | 65 | 209155 | 2x40 | 100 |
Packaging
Designation | Cardboard box | Cardboard box weight | Cardboard box Outside Deminsions | Pallets | Pallet weight | Pallet's external dimensions |
---|---|---|---|---|---|---|
piece | kg | cm | piece | kg | cm | |
Reel HS 800 / 795/80-750 | 0 | - | 9 | 170 | 210x210x80 | |
Important: |
Technical drawing
Spools
