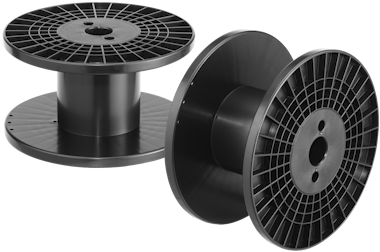

Reel JP 15

00 New Products, 11 Reels for steel cord, bare wire, stranded wire

  • Reusable
  • Winding material : EDM WIRE, Alloy wires
  • Material : ABS , PS   |   Material Information
  • Standard winding volume : 4354 cm³
  • Central bore Ø : 34 mm
  • Catalogue categorization: 00 New Products, 11 Reels for steel cord, bare wire, stranded wire

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
250 110 34 140 110 15 4354 2x13 32

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel JP 15 25 22.7 77x52x53 390 355 120x100x198

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.
