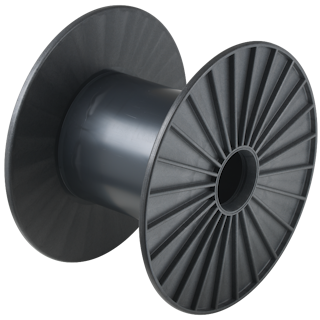

Reel LM 630/127-420
08 LM / EM reels, 07 General reels
- Reusable
- Winding material : data cable, power cables, Extruded cables
- Standard winding volume : 88841 cm³
- Central bore Ø : 127 mm
- Catalogue categorization: 08 LM / EM reels, 07 General reels
- DIN 46395
Technical data - spools
Spools
Flange Ø | Barrel Ø | Central bore Ø | Width | Winding width | Flange thickness |
Winding- volume |
Central bore Ø tapered part |
Drive- hole/pin |
Drive- distance |
---|---|---|---|---|---|---|---|---|---|
d1 [mm] | d2 [mm] | d3 [mm] | L1 [mm] | L2 [mm] | S [mm] | V [cm³] | d4 [mm] | d5 [mm] | E1 [mm] |
630 | 315 | 16 - 127 | 420 | 50 - 425 | 20 | 11690 - 99362 | 143.5 |
Packaging
Designation | Cardboard box | Cardboard box weight | Cardboard box Outside Deminsions | Pallets | Pallet weight | Pallet's external dimensions |
---|---|---|---|---|---|---|
piece | kg | cm | piece | kg | cm | |
Reel LM 630/127-420 | 0 | - | 20 | 166 | 120x120x225 | |
Important: |
Technical drawing
Spools
![](https://images.hafner-spools.com/zeichnungen/Prospekt_07.jpg?fit=max&h=600&ixlib=php-2.1.1&q=80&w=600&s=355e748d1646f35a86507643bb307e8b)
