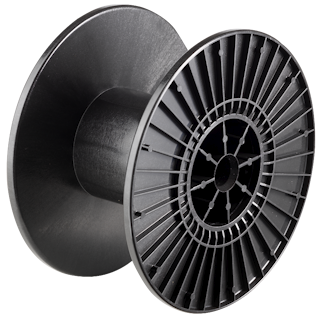

Reel MeFo 160

12 Reels for soldering wire, Lyonese thread

  • Winding material : Leonic threads, Tear tape, Plastic films, metal foils, Security threads
  • Material : SAN   |   Material Information
  • Standard winding volume : 1343 cm³
  • Central bore Ø : 16.3 mm
  • Catalogue categorization: 12 Reels for soldering wire, Lyonese thread

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
160 65 16.3 93 80 6.5 1343

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel MeFo 160 120 26.4 77x52x53 0 -

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
