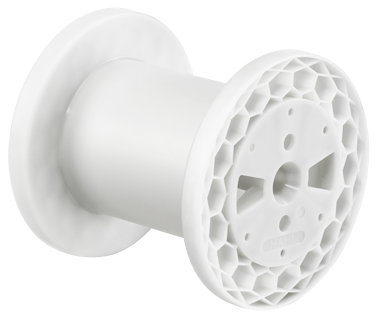

Reel MK 200-R HD

04 Cylindrically barrelled delivery spools, 00 New Products

  • Reusable
  • Winding material : monofilaments
  • Standard winding volume : 3063 cm³
  • Central bore Ø : 22 mm
  • Catalogue categorization: 04 Cylindrically barrelled delivery spools, 00 New Products

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
200 125 22 200 160 20 3063 34 2x13 32

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel MK 200-R HD 30 - 66x54x67 420 - 100x120x220

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.
