Reel MT 396-305

23 Spools for medical equipment

  • Single-use
  • Winding material : Cannula/medical tube, Medical tube, capillary tubes
  • Material : ABS   |   Material Information
  • Standard winding volume : 3814 cm³
  • Central bore Ø : 305 mm
  • Catalogue categorization: 23 Spools for medical equipment

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
396 310 305 92 80 4 3814

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel MT 396-305 0 - 45 35 80x120x100

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

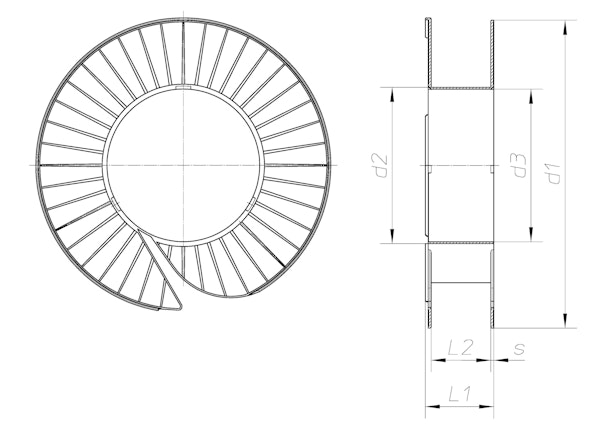

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
