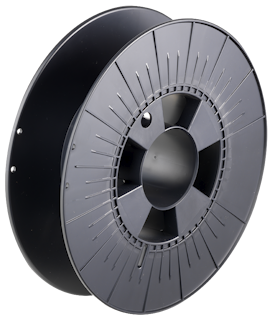

Reel SD 200/50,5-53 K

27 Spools for 3D-printer, 06 Welding wire reels

  • Single-use
  • Winding material : Welding wire, 3 D printer filaments
  • Material : PS , ABS   |   Material Information
  • Standard winding volume : 1024 cm³
  • Central bore Ø : 50.50 mm
  • Catalogue categorization: 27 Spools for 3D-printer, 06 Welding wire reels
  • DIN EN ISO 544

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
200 105 50.5 53 45 3.8 1024 1x10 44.5

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel SD 200/50,5-53 K 112 26 68x44x71 1050 240 80x120x185

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
