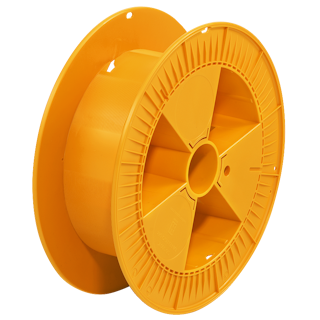

Reel SD 300 K-LB

06 Welding wire reels

  • Single-use
  • Winding material : Welding wire
  • Material : ABS , PS   |   Material Information
  • Standard winding volume : 3220 cm³
  • Central bore Ø : 51.5 mm
  • Catalogue categorization: 06 Welding wire reels
  • DIN EN ISO 544

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
300 212 51.5 103 90.5 6 3220 1x10 44.5

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel SD 300 K-LB 40 27 80,5x61,5x76,5 360 236 110x130x205

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
