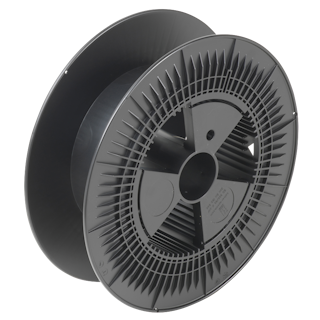

Reel SD 300/20 K-AW

06 Welding wire reels

  • Single-use
  • Winding material : Welding wire
  • Material : PS , ABS   |   Material Information
  • Standard winding volume : 3845 cm³
  • Central bore Ø : 51.5 mm
  • Catalogue categorization: 06 Welding wire reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
300 180 51.5 103 85 9 3845 1x10 44.5

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel SD 300/20 K-AW 40 29 80,5x61,5x76,5 360 263 110x130x205
