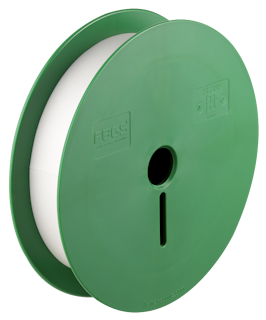

Reel SI 200/25,8-46

21 Fibre optic cable reels

  • Reusable
  • Winding material : Optical fibre cable, optical cables
  • Material : PS   |   Material Information
  • Standard winding volume : 390 cm³
  • Central bore Ø : 25.80 mm
  • Catalogue categorization: 21 Fibre optic cable reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
200 166 25.8 46 20 - 220 3 195 - 2150

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel SI 200/25,8-46 40 13 54x40x41 0 -

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
