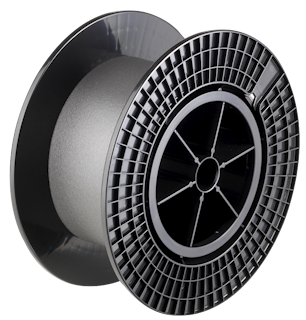

Reel SI 235

21 Fibre optic cable reels

  • Reusable
  • Winding material : Optical fibre cable, optical cables
  • Material : ABS   |   Material Information
  • Standard winding volume : 2257 cm³
  • Central bore Ø : 25.40 mm
  • Catalogue categorization: 21 Fibre optic cable reels

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
235 158 25.4 108 95 6.5 2257

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel SI 235 0 - 120 58 80x120x105

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

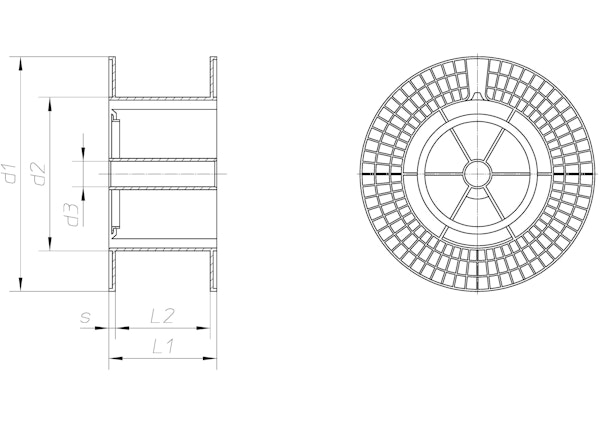

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)

Set

Add data sheet for the set

Set
