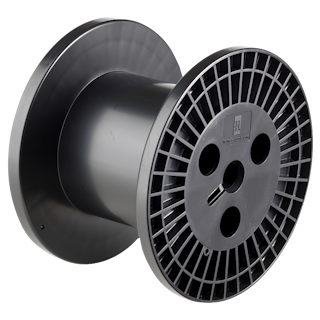

Reel US P 4

11 Reels for steel cord, bare wire, stranded wire, 24 Spools for photovoltaic ribbon/flat wire

  • Reusable
  • Winding material : Enamelled copper wire, Alloy wires, Metal strip, metal tape
  • Material : ABS , PS   |   Material Information
  • Standard winding volume : 1073 cm³
  • Central bore Ø : 16 mm
  • Catalogue categorization: 11 Reels for steel cord, bare wire, stranded wire, 24 Spools for photovoltaic ribbon/flat wire

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
152 89 16 110 90 10 1073

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel US P 4 63 21.10 87x41x41 1008 335 100x120x171

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.

Download (PDF)
