Reel USR 595
15 Cable reels and Utility reels
- Winding material : data cable, power cables, Extruded cables, Insulated cables, Cable assembly, optical cables, Signal cable
- Material : PP TSG | Material Information
- Standard winding volume : 91585 cm³
- Central bore Ø : 80 mm
- Catalogue categorization: 15 Cable reels and Utility reels
Technical data - spools
Spools
| Flange Ø | Barrel Ø | Central bore Ø | Width | Winding width | Flange thickness |
Winding- volume |
Central bore Ø tapered part |
Drive- hole/pin |
Drive- distance |
|---|---|---|---|---|---|---|---|---|---|
| d1 [mm] | d2 [mm] | d3 [mm] | L1 [mm] | L2 [mm] | S [mm] | V [cm³] | d4 [mm] | d5 [mm] | E1 [mm] |
| 595 | 250 | 36 - 100 | 470 | 310 - 400 | 35 | 70978 - 91585 | 1x32,5 | 85.4 |

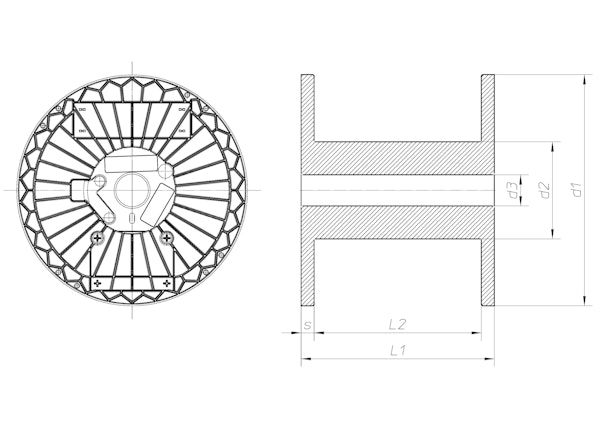

Technical drawing
Spools
