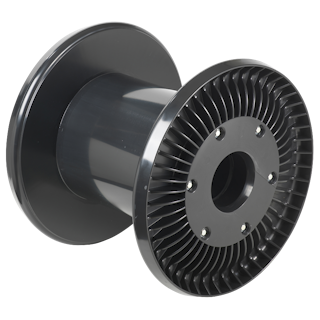

Reel VMV 560/127-480

07 General reels, 09 VM - reels

  • Reusable
  • Winding material : bare wires, Stainless steel wires, Braiding wire, Alloy wires, Stranded wires, Steel cord, Steel wire rope, Metal strip, metal tape, Profile wire, square wire
  • Material : ABS   |   Material Information
  • Standard winding volume : 63980 cm³
  • Central bore Ø : 127 mm
  • Catalogue categorization: 07 General reels, 09 VM - reels
  • DIN 46395

Technical data - spools

Spools

Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
560 315 16 - 127 480 50 - 425 50 8418 - 71557 143.5

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Reel VMV 560/127-480 0 - 16 248 100x120x217

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Technical drawing

Spools

Data sheet

You can download all the information as a PDF here.
