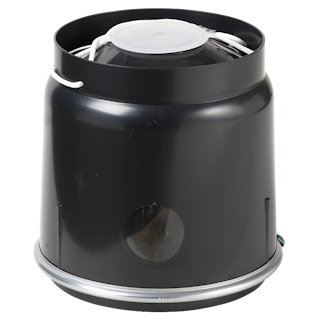

Container VB 250

Technical Data Container

Designation	Outer Ø	Overall height	Inner Ø bottom	Inner Ø top
	d1 max	h1 max	d2	d3	h2 min
Container VB 250	304	273	-	-	-

Designation	Cardboard box	Cardboard box weight	Cardboard box Outside Deminsions	Pallets	Pallet weight	Pallet's external dimensions
	piece	kg	cm	piece	kg	cm
Container VB 250	0	0		96	154	112x120x188
Important: If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Designation	Flange Ø	Barrel Ø	Central bore Ø	Width	Winding width	Flange thickness	Winding- volume	Central bore Ø tapered part	Drive- hole/pin	Drive- distance
	d1 [mm]	d2 [mm]	d3 [mm]	L1 [mm]	L2 [mm]	S [mm]	V [cm³]	d4 [mm]	d5 [mm]	E1 [mm]
Reel 250 E	250	160	16 - 22	200	160	20	4637	34	2x13	32
Reel DWF 250	250	160	16 - 22	200	160	20	4637	34	2x13	32
Reel G 250	250	160	16 - 22	198	158	20	4637	34	2x13	32
Reel K 250	250	160	16 - 22	200	160	20	4637	34	2x13	32
Reel K 250-R	250	128	22.2	200	160	20	5795
Reel K 250/22 with radius	250	160	16 - 22	200	160	20	4637	34	2x13	32
Reel KK 250 KON	250	150	16 - 22	200	160	20	4834	34	2x13	32
Reel KN 250-R	250	160	22.2	200	160	20	4637
Reel SP 250	250	160	22	200	160	20	4637	34	2x13	32
