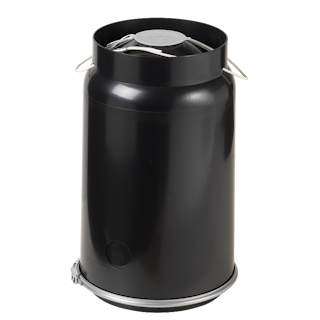

Container VB 315/500

19 Reels and reel containers, 05 Spools with tapered barrel

  • Reusable
  • Winding material : Enamelled copper wire
  • Material : ABS   |   Material Information
  • DIN EN 60264-3-4 Container for spools with with tapered barrel - Dimensions
  • DIN EN 60264-3-5 Container for spools with tapered barrel - Spezification

Technical Data Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VB 315/500 400 630 338 355 63

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Container VB 315/500 0 0 27 140 114x114x200

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Spools

Designation Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
Reel 315/500
Reel 315/500 Reel 315/500 		315 180 100 500 425 37.5 19768 106 2 x 16 62.5
Reel 315/500-E
Reel 315/500-E Reel 315/500-E 		315 180 100 500 425 37.5 19768 106 16 x 2 62.5

Technical drawing

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)
