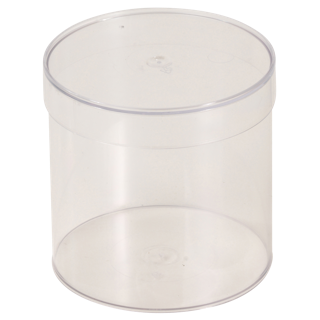

Container VD 100

03 Cylindrical barrelled delivery spools IEC 60264-2-1

  • Single-use, Reusable
  • Winding material : Enamelled copper wire
  • Material : PS   |   Material Information

Technical Data Container

Designation Outer Ø Overall height Inner Ø bottom Inner Ø top
d1 max h1 max d2 d3 h2 min
Container VD 100 107 105.50 - - -

Packaging

Designation Cardboard box Cardboard box weight Cardboard box Outside Deminsions Pallets Pallet weight Pallet's external dimensions
piece kg cm piece kg cm
Container VD 100 144 9.30 68x44x74 0 0

Important:
If pallet packaging is indicated, this is the preferred method of packing the spools. Please note that the pallets must not be stored in direct sunlight, as the heat build-up may cause the plastic to warp permanently.

Spools

Designation Flange Ø Barrel Ø Central bore Ø Width Winding width Flange thickness Winding-
volume 		Central bore Ø
tapered part 		Drive-
hole/pin 		Drive-
distance
d1 [mm] d2 [mm] d3 [mm] L1 [mm] L2 [mm] S [mm] V [cm³] d4 [mm] d5 [mm] E1 [mm]
Reel HK 80 S
Reel HK 80 S Reel HK 80 S 		80 55 8 - 16 100 69.5 15 220
Reel HK 80/45
Reel HK 80/45 Reel HK 80/45 		80 55 8 - 16 100 69.5 15 220
Reel 100-E
Reel 100-E Reel 100-E 		100 63 16 100 80 10 379 24 2x7 20
Reel 100/50-E
Reel 100/50-E Reel 100/50-E 		100 50 16 100 80 10 471 24 2x7 20
Reel EPA 100-E
Reel EPA 100-E Reel EPA 100-E 		100 63 16 100 80 10 379 24 2x7 20
Reel HKV 100
Reel HKV 100 Reel HKV 100 		100 56 16 100 49 25.5 390 19.5
Reel K 100
Reel K 100 Reel K 100 		100 63 16 100 80 10 379 24 2x7 20

Technical drawing

Container

Data sheet

You can download all the information as a PDF here.

Download (PDF)
